SHADING

Introduction to Shading and its Definition

Shading, in the context of visual perception and psychology, refers specifically to the gradations of darkness and lightness observed on an object’s surface. This phenomenon is critical because it provides the primary visual information necessary for the human visual system to infer the three-dimensional structure, orientation, and curvature of objects within the environment. Unlike simple changes in global illumination, shading is a localized effect arising from the differential amount of light reflected from various points on a surface, contingent upon the relative angles between the surface normal, the light source, and the observer’s viewpoint. The perception of shading is arguably one of the most fundamental mechanisms by which the brain successfully transforms a two-dimensional retinal projection into a navigable, volumetric representation of reality.

The definition derived from early psycho-physical studies emphasizes that shading is not merely an indicator of low luminance, but rather a sophisticated cue indicating surface orientation. A point on an object that is directly facing the light source will exhibit maximum brightness, while points that are angled away, or lie in transition zones between illuminated and shadowed areas, will display corresponding gradations of darkness. This continuous, smooth variation in intensity across a surface is the characteristic feature that allows the visual system to distinguish between a flat, uniformly colored surface and a complex, curved object, such as a sphere or a face. The consistency and regularity of these intensity gradients are essential for maintaining perceptual stability.

Historically, researchers recognized the profound importance of shading alongside other depth cues like texture gradients and linear perspective. The ability to correctly interpret these gradations is innate or learned very early, providing a rapid, efficient method for assessing volume. If the visual system were unable to correctly process these subtle changes in intensity, all objects would appear flat and lacking in depth, rendering tasks requiring fine motor control or spatial reasoning nearly impossible. Therefore, shading serves as a powerful, unambiguous signal regarding the local geometry of surfaces, providing essential input for higher-level object recognition processes.

The Physics of Light Interaction and Surface Reflectance

The physical basis of shading lies in the complex interaction between illumination and the material properties of the object. When light rays strike a surface, they are either absorbed, transmitted, or reflected. The amount of light reflected back toward the observer determines the perceived brightness at that point. This reflected intensity is dictated by three primary physical factors: the intensity of the illumination source, the inherent reflectivity (or albedo) of the surface material, and most critically for shading, the angle between the incident light ray and the surface normal—a vector perpendicular to the surface at that specific point.

For many common surfaces, particularly those that are matte or diffuse (known in physics as Lambertian surfaces), the perceived brightness is directly proportional to the cosine of the angle between the light source direction and the surface normal. This means that as a surface turns away from the light, the reflected intensity drops off smoothly, creating the recognizable smooth transition from light to dark that constitutes shading. Highly specular surfaces, conversely, exhibit sharp, localized highlights in addition to diffuse shading, adding complexity to the visual computation required for shape recovery, as these highlights depend heavily on the specific viewpoint of the observer.

Understanding the physics of reflectance is paramount because the visual system must effectively solve an “inverse problem”: given the observed intensity distribution (the shading), the brain must reverse-engineer the surface orientation and the illumination conditions that caused it. This computational challenge is often simplified by assuming certain constraints, such as uniform albedo across the surface or a single, distant light source. Without these simplifying assumptions, the ambiguity inherent in the reflectance equation would make accurate 3D reconstruction impossible. Thus, the observed shading is a compound signal, reflecting both the material properties of the object and its geometric relationship to the light source.

Shading as a Monocular Depth Cue

Shading is categorized as a critical monocular depth cue, meaning the information it provides about depth and structure can be utilized even when viewing the world with only one eye. It stands in contrast to binocular cues like stereopsis, which rely on the disparity between images received by two eyes. The effectiveness of shading as a depth cue rests on its ability to signal the continuous change in surface orientation across an object, allowing the observer to perceive volume and curvature where none exists in the two-dimensional retinal image.

The visual system leverages the intensity gradient provided by shading to infer the slope and depth of the surface. For instance, a rapid change in shading intensity usually indicates a sharp edge or steep curvature, whereas a slow, gradual change suggests a shallow or gently curving surface. This information is processed locally and then integrated globally across the visual field. This capacity is particularly potent when other cues are absent or ambiguous; for example, a simple circle drawn on a page can instantly be perceived as a sphere merely by adding appropriate shading gradations, illustrating the power of this cue over contour information alone.

Furthermore, shading cues are robust across various viewing distances, unlike perspective or relative size. While the overall brightness of an object may diminish with distance, the pattern of shading—the ratio of lightness and darkness across its surface—remains largely consistent, preserving the structural information. This consistency ensures that the visual system receives stable information about object geometry regardless of where the observer is positioned, making shading a reliable and universal mechanism for three-dimensional perception, integrated seamlessly alongside texture, occlusion, and perspective to form a unified percept of depth.

The Principle of Convexity and Concavity

A core principle governing the perceptual interpretation of shading is the robust, almost automatic assumption that illumination originates from above and slightly frontal. This light-from-above heuristic is deeply ingrained in human visual processing, likely due to the natural prevalence of overhead light sources (the sun, or typical indoor lighting). This assumption dictates whether a shaded pattern is interpreted as a bump (a convex protrusion) or a pit (a concave depression).

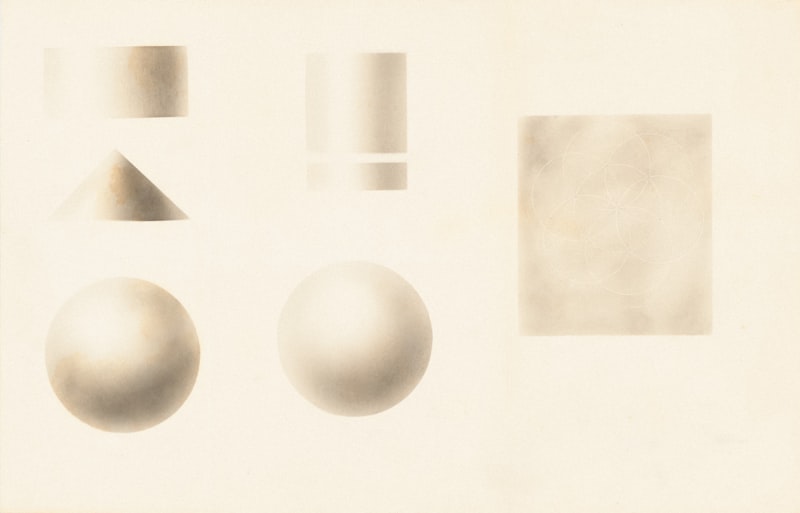

When a surface is perceived as convex, the upper portions facing the light source will be brighter, and the lower portions will transition into darkness. Conversely, if a surface is interpreted as concave, the upper parts will appear shaded (as they fall into shadow relative to the upper light source), and the lower parts, catching the light, will appear brighter. The immediate and compelling nature of this interpretation is demonstrated dramatically in visual illusions, such as the inversion of craters and domes: if an image of a shaded surface is rotated 180 degrees, the areas previously perceived as pits often suddenly flip to be perceived as bumps, because the light source now appears to be originating from the bottom, violating the standard heuristic.

The dominance of the light-from-above assumption highlights that visual perception is not purely passive; it relies heavily on built-in or learned constraints to resolve inherent ambiguities. While the actual light source in a controlled environment might be lateral or even subterranean, the visual system defaults to the overhead assumption unless strongly contradicted by other cues, such as cast shadows or known object shapes. This powerful heuristic allows for rapid decision-making regarding surface topography, enabling quick and efficient navigation of the physical world by making the most probable interpretation based on ecological regularities.

Neural Processing and Perceptual Integration

The processing of shading information begins early in the visual cortex. Initial processing occurs in areas like the primary visual cortex (V1), where neurons are sensitive to oriented edges and simple intensity gradients. However, the true interpretation of shading—the transformation of intensity gradients into meaningful surface curvature—requires higher-level integration, involving areas such as V2, V4, and the inferotemporal cortex, which are involved in shape perception and object recognition. These areas must integrate the shading cues with other depth information, such as texture and contours.

One of the most complex tasks facing the neural system is achieving lightness constancy. Lightness constancy is the ability to perceive the intrinsic lightness or reflectance (albedo) of an object’s surface as stable, even when the illumination, and therefore the measured intensity, changes dramatically due to shading. For instance, the brain must recognize that a shaded white shirt is still white, even though the light intensity reflected from it might be lower than the intensity reflected from an unshaded gray wall. This decoupling requires the visual system to estimate and discount the effect of the illumination field, attributing intensity variation either to changes in light (shading/shadow) or changes in material (reflectance/albedo).

Neural mechanisms dedicated to shape perception must effectively solve this ill-posed inverse problem. Computational models suggest that the brain utilizes localized processing of intensity changes, inferring local surface tilt, and then integrates these local tilts to reconstruct a global, coherent surface map. This integrated approach ensures that the perceived shape remains stable, even as the object moves or the observer changes their viewpoint. The robustness of this perceptual interpretation mechanism is testament to the highly specialized evolutionary development of visual cortical areas dedicated to inferring shape from light.

Shape-from-Shading (SFS) Theory

Shape-from-Shading (SFS) is a fundamental area of research in computational vision and cognitive science that attempts to formalize the process by which a 3D shape is mathematically recovered solely from the observed intensity variations (shading) in a 2D image. The theoretical challenge of SFS is significant because the relationship between shading and shape is non-linear and ambiguous: many different shapes, viewed under different lighting conditions, can produce the exact same shading pattern.

Early SFS algorithms, pioneered in the 1970s, utilized sophisticated mathematical techniques, often relying on the reflectance map equation, which links image intensity to surface orientation. To make the problem solvable, these algorithms typically impose strict constraints: knowledge of the light source direction, the assumption of a Lambertian (matte) surface, and a known albedo. The goal is to calculate the depth map or surface orientation field that best accounts for the observed pixel intensities. However, these computational solutions are often slow and highly sensitive to noise, contrasting sharply with the speed and robustness of the human visual system.

The study of SFS provides valuable insight into the constraints the human visual system might be using. While the brain does not likely perform explicit, high-precision mathematical integration like a computer algorithm, it certainly employs highly efficient, probabilistic heuristics that mimic the solutions provided by SFS models. The cognitive approach suggests that the brain uses prior knowledge (e.g., objects are usually smooth, light comes from above) to rapidly converge on the most plausible shape interpretation, effectively transforming the complex, ill-posed SFS problem into a quick, ecologically relevant estimation task.

Ambiguity and Illumination Assumptions

Despite its power, shading is inherently ambiguous. A critical source of ambiguity arises from the confounding of illumination and reflectance. As noted, a dark area in an image could be dark because the surface is highly curved and oriented away from the light (shading), or because the surface itself is made of a dark material (low reflectance), or because the area is covered by a cast shadow. The visual system must constantly disentangle these possibilities, often leading to perceptual errors or reversals when context is insufficient.

The resolution of these ambiguities relies heavily on integrating shading with global context and other visual cues. For example, the presence of sharp boundaries, known as occluding contours, often helps segment an object and provide boundary conditions for the SFS process. Furthermore, cast shadows—which are distinct from the shading caused by surface curvature (often called attached shadows)—provide crucial information about the position of the light source and the overall arrangement of objects in the scene, aiding in the interpretation of complex shading patterns.

When the visual system’s ingrained assumptions about illumination are violated, significant perceptual effects occur. If an object is shaded uniformly in a way that suggests a single, distant light source, but the viewer knows the source is complex (multiple lights, highly local), the perceived shape may oscillate or appear unstable. The study of these ambiguities underscores that visual perception is a constructive process, where the brain actively imposes structure and assumptions upon the sensory data to achieve a stable, consistent interpretation of the three-dimensional world, using shading as one of the most powerful, yet flexible, pieces of evidence.

Application in Visual Arts and Computer Graphics

The principles of shading are not confined to psychological theory; they form the bedrock of realistic representation in both traditional visual arts and modern computer graphics. Artists have long exploited the systematic use of light and shadow, a technique known as Chiaroscuro, to create the powerful illusion of volume and depth on a two-dimensional surface. By meticulously controlling the gradations of darkness, artists can manipulate the viewer’s perception, emphasizing convexity, defining edges, and directing attention.

In modern computer graphics and visualization, the physical laws governing shading are codified into complex rendering equations. Algorithms, such as Phong shading or ray tracing, accurately simulate the interaction of light with virtual surfaces, incorporating diffuse reflection, specular highlights, and ambient light to create photorealistic images. The success of these rendering techniques relies entirely on accurately modeling the subtle transitions of light and dark that the human visual system expects based on its ecological experience with real-world illumination.

Consequently, the study of shading bridges experimental psychology, theoretical physics, and applied technology. Whether the goal is to understand how the brain constructs reality or how a graphics card renders a realistic virtual environment, the fundamental process remains the same: the skillful and accurate depiction and interpretation of the gradations of darkness on an object’s surface, transforming flat data into a coherent, volumetric experience. This essential visual cue confirms shading’s status as a cornerstone of both human perception and visual representation.
